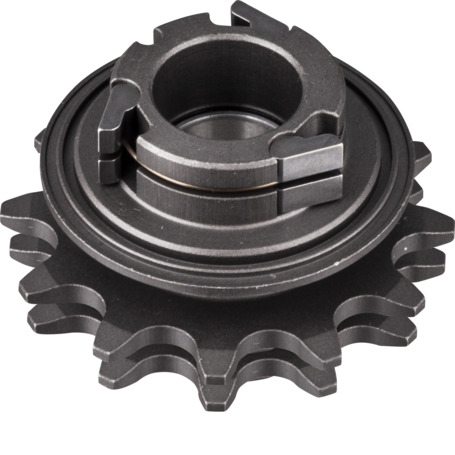

Spank SS-DJ Singlespeed Rear Freehub Cog 12T


A La Carte Hubs - choose the combination that works best for you.

Front and rear hubs sold separately. Freehub sold separately.

When choosing a rear hub choose the separate freehub to suit the cassette you will be installing.

  • Oversized bearings for optimal adaptability
  • Simple to maintain
  • Light weight
  • Advanced seal system
  • Rear 102T, 6-Pawl 3.5 degree Engagement
  • Full Alloy body and axle
  • Bite Block Alloy freehubs



Hex J-Bend Boost Front Hub F15/20 32H

  • Colours available: Black, Blue, Green, Orange, Purple, Raw Silver, Red

Hex J-Bend Front Hub F15/20 32H

  • Weight optimized, gravity inspired front hub
  • 32mm diameter Oversized bearings, allow adaptability up to 20mm thru axles
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Compatible with 32mm diameter HEX front hub adapters only
  • Advanced seal system improves prevention of bearing contamination
  • Recommended for: All mountain, enduro, trail, free ride, DH, E-Bike
  • Colours available: Black



Hex Drive 102T J-Bend Boost Rear Hub R148 32H

  • Colours available: Black, Blue, Green, Orange, Purple, Raw Silver, Red

Hex Drive 102T J-Bend Rear Hub R135/142 32H

  • Colours available: Black

Hex Drive 102T J-Bend Rear Hub R150/157 32H

  • SPANK's HEX DRIVE 102T technology delivers 3.5 degrees of engagement, for almost instant pickup
  • 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
  • Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Advanced seal system improves prevention of bearing/drive system contamination
  • Colours available: Black



Hex J-Bend Gravel Front Hub F12/15 28H

  • Highly weight optimized front hub, idea for Gravel and XC.
  • 28mm diameter bearings minimize overall weight, and allow adaptability up to 15mm thru axles
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Compatible with 28mm diameter HEX front hub adapters only
  • Advanced seal system improves prevention of bearing contamination
  • Recommended for: Gravel, XC
  • Colours available: Black



Hex Drive 102T Gravel Rear Hub R135/142 28H

  • SPANK's HEX DRIVE 102T technology delivers 3.5 degrees of engagement, for almost instant pickup
  • 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
  • Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Advanced seal system improves prevention of bearing/drive system contamination
  • Recommended for:  Gravel, XC
  • Colours available: Black



SS-DJ Singlespeed Rear Hub 135 Bolt-On 32H Freehub Cog 11T

  • Ultra-tough 5 bearing Single Speed rear hub for All Mountain, DJ, FR, Pumptrack, and BMX.
  • Integrated 3mm 11T Cog Freehub (for 1/8" SS Chains)
  • Female Axle, M10 Lock-down Bolts, Alloy End-Caps
  • Wide Flange design eliminates dish in rear wheel, maximizing wheel strength & stiffness
  • Available 12T and 13T Cog Freehub
  • Colours available: Black



 Model    Hub  Hub Spacing  Hole Count  Adapter Incl.  Weight Approx.  Disc Mount  Adapter Available Separately
 Boost F15/20  Front  Hex J-Type  Boost 15x110  32H  Boost 20x110  173g  6-Bolt  Torque Caps
 Non-Boost F15/20  Front  Hex J-Type  15x100  32H  15x100  165g  6-Bolt  QRx100, 12x100
 Gravel F12/15  Front  Hex J-Type  12x100  28H  QRx100  147g  6-Bolt  15x100
 Boost R148  Rear  Hex J-Type  Boost 12x148  32H    318g  6-Bolt  QRx141
 Non-Boost R135/142  Rear  Hex J-Type  12x142  32H  12x135  314g  6-Bolt  QRx135, 10x135
 Gravel R135/142  Rear  Hex J-Type  12x142  28H  QRx135  315g  6-Bolt  12x135, 10x135
 R150/157  Rear  Hex J-Type  12x150  32H  12x157  323g  6-Bolt
 Single Speed DJ  Rear      32H  11T Cog  510g  6-Bolt  12T & 13T Cog Freewheels



Brand Spank
SKU SPA-C07H3000006ASPK
Barcode 4710155967382
