A La Carte Wheels - choose the combination that works best for you.

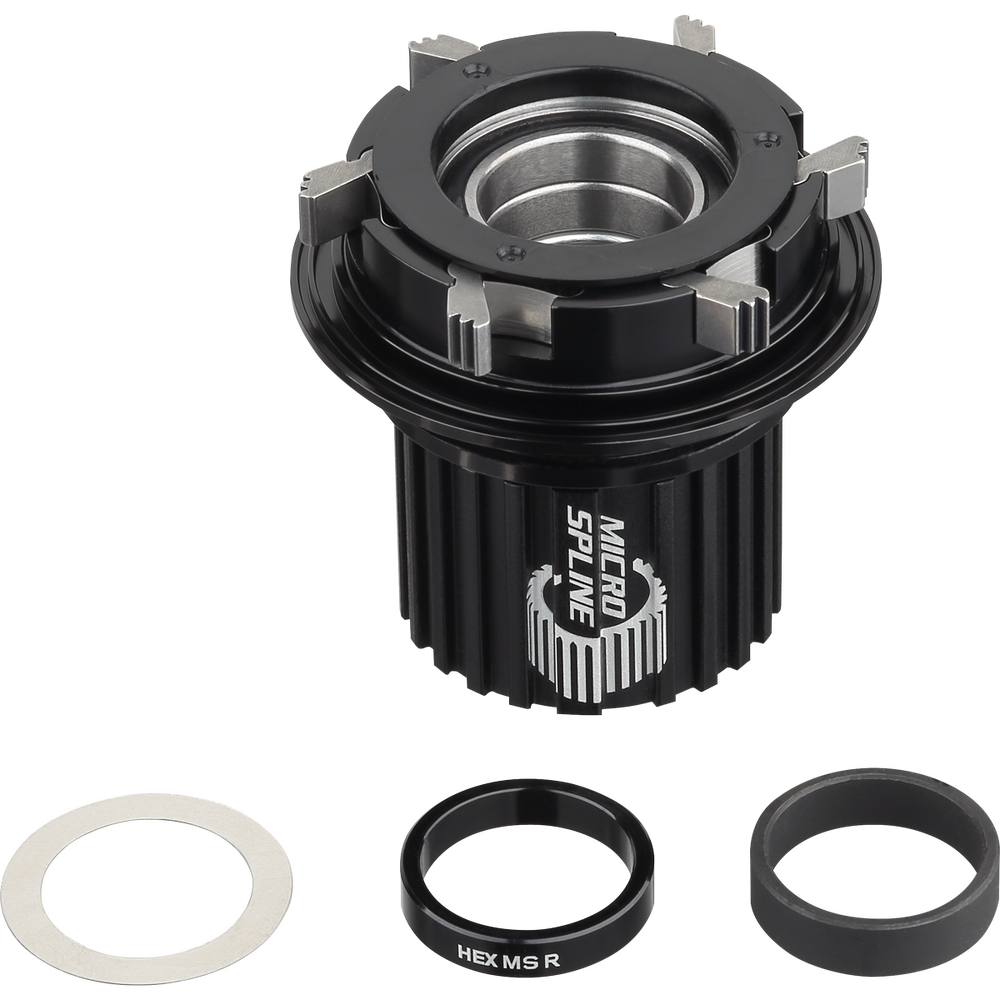

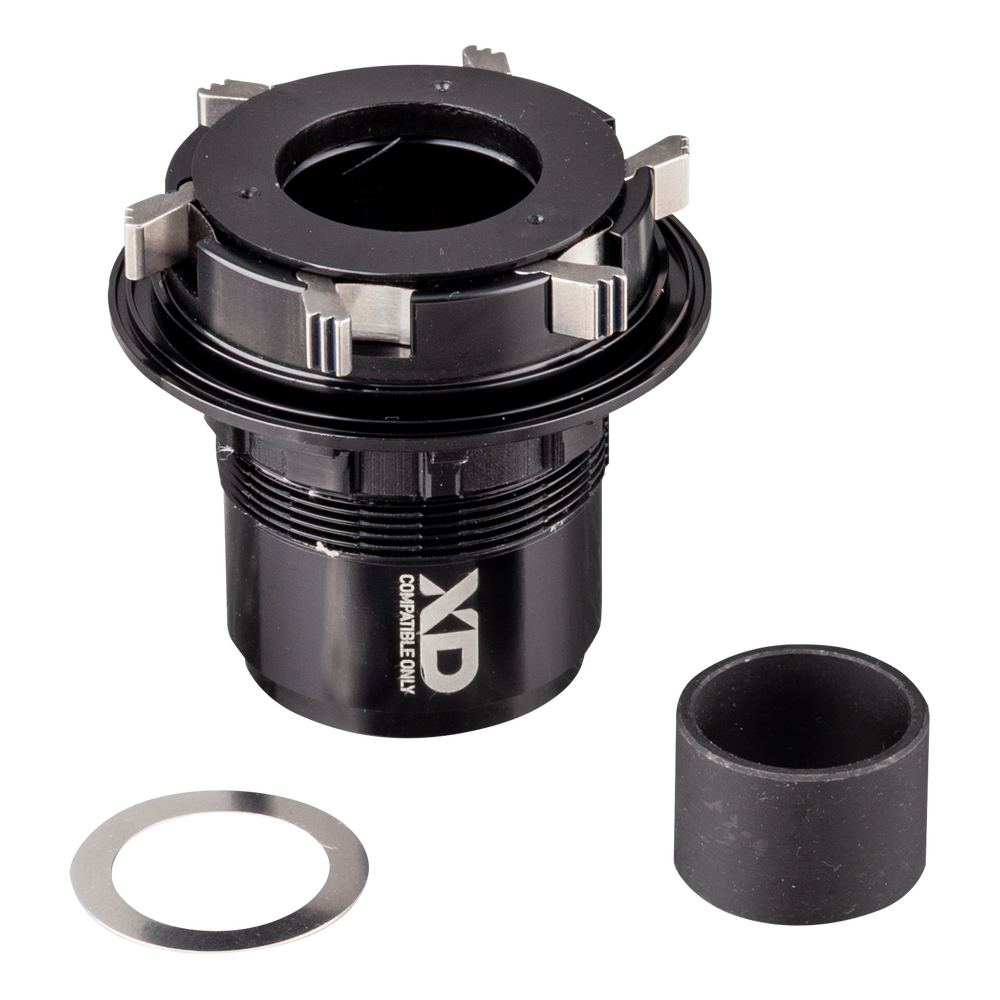

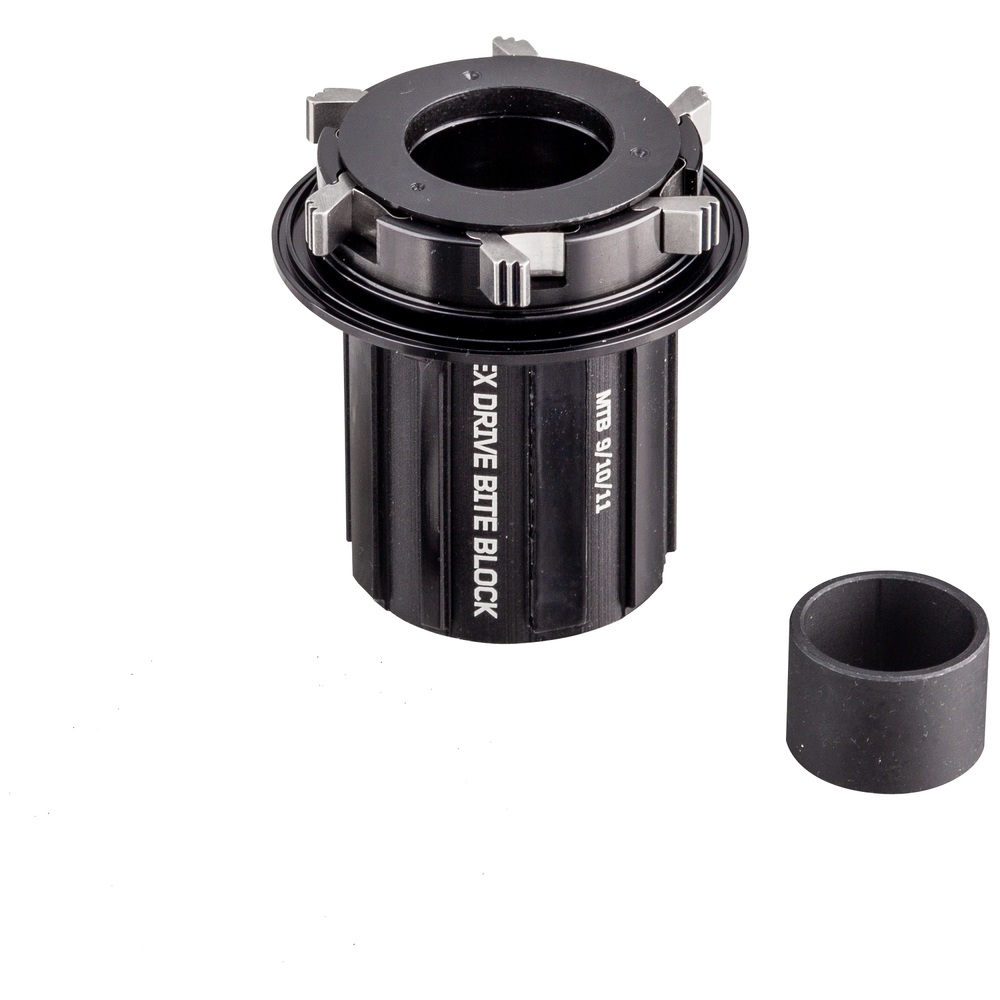

Front and rear wheels sold separately. Freehub sold separately.
When choosing a rear wheel choose the separate freehub to suit the cassette you will be installing.

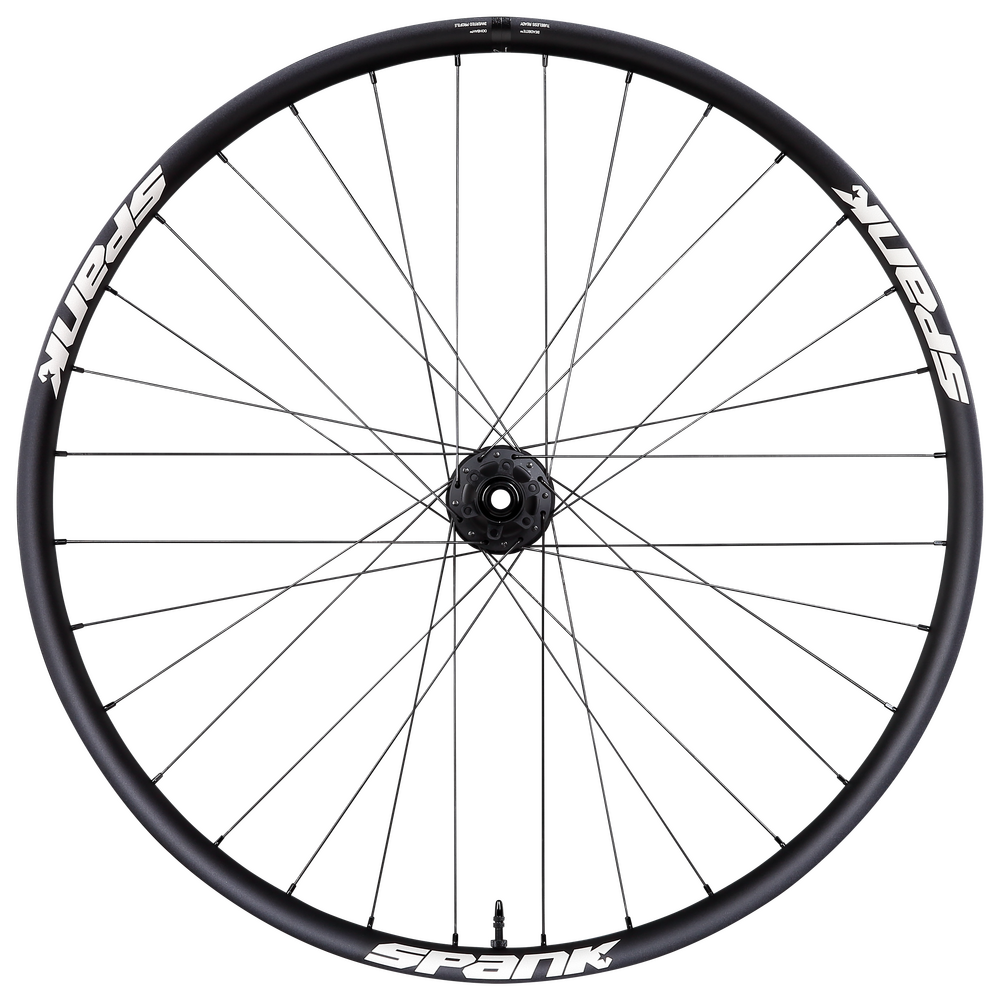

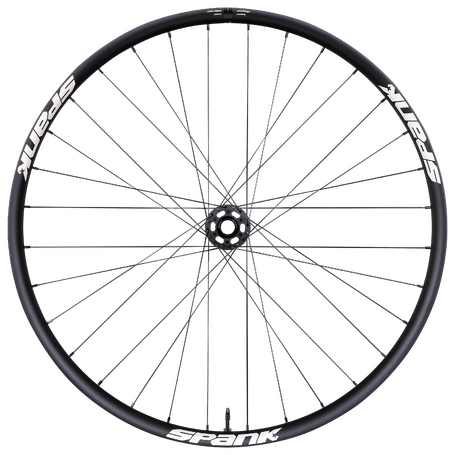

- An ultra-wide, high performance alloy rim, weight optimized for Enduro, Trail and All Mountain use
- Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 35mm and outer width of 39.5mm provides ultra-wide support for Plus-Size and high-volume tires
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shotpeen finish to increase fatigue life and make it more durable
Recommended for: Enduro, All Mountain, Trail
Rim Specifications:
Hole Count: | 32H |
Inner Width (mm): | 35 |
Outer Width (mm): | 39.5 |
Profile Height (mm): | 22 |
Tyre Fit: | 2.3 - 3.0 inch |
Build Specifications:
Build: | Handbuilt |
Hub: | Spank Hex J-Type |
Disc Mount | 6-Bolt |
Spokes: | J-Hook, triple-butted 2.2/1.8/2.0 |
Nipples: | Alloy DSN |
Lacing: | 3 cross lacing |
Valve: | F/V Presta |
Tubeless: | Tubeless taped and valved |
Variant Specs:
Size | Hub | Hub Spacing | Hole Count | Adapter Incl. | Weight Approx. | ERD | ETRTO | Spoke Length Right (mm) | Spoke Length Left (mm) | |
27.5" | Front | Hex J-Type | Boost 15x110 | 32H | 945g | 554++ | 584x35 | 268 | 266 | |
27.5" | Rear | Hex J-Type | Boost 12x148 | 32H | 1100g | 554++ | 584x35 | 269 | 272 | |
29" | Front | Hex J-Type | Boost 15x110 | 32H | 1060g | 591++ | 622x35 | 288 | 286 | |
29" | Rear | Hex J-Type | Boost 12x148 | 32H | 1140g | 591++ | 622x35 | 288 | 290 |
Brand | Spank |
Unit Of Measure | 1 |
SKU | Size / Colour | Barcode |
---|---|---|
SPA-C090722F20J620A |
Front 27.5in 32H 110
Black |
4710155965319 |
SPA-C090732F20J620A |
Front 29in 32H 110
Black |
4710155965326 |
SPA-C090722RE0J620A |
Rear 27.5in 32H 148
Black |
4710155969041 |
SPA-C090732RE0J620A |
Rear 29in 32H 148
Black |
4710155969058 |
