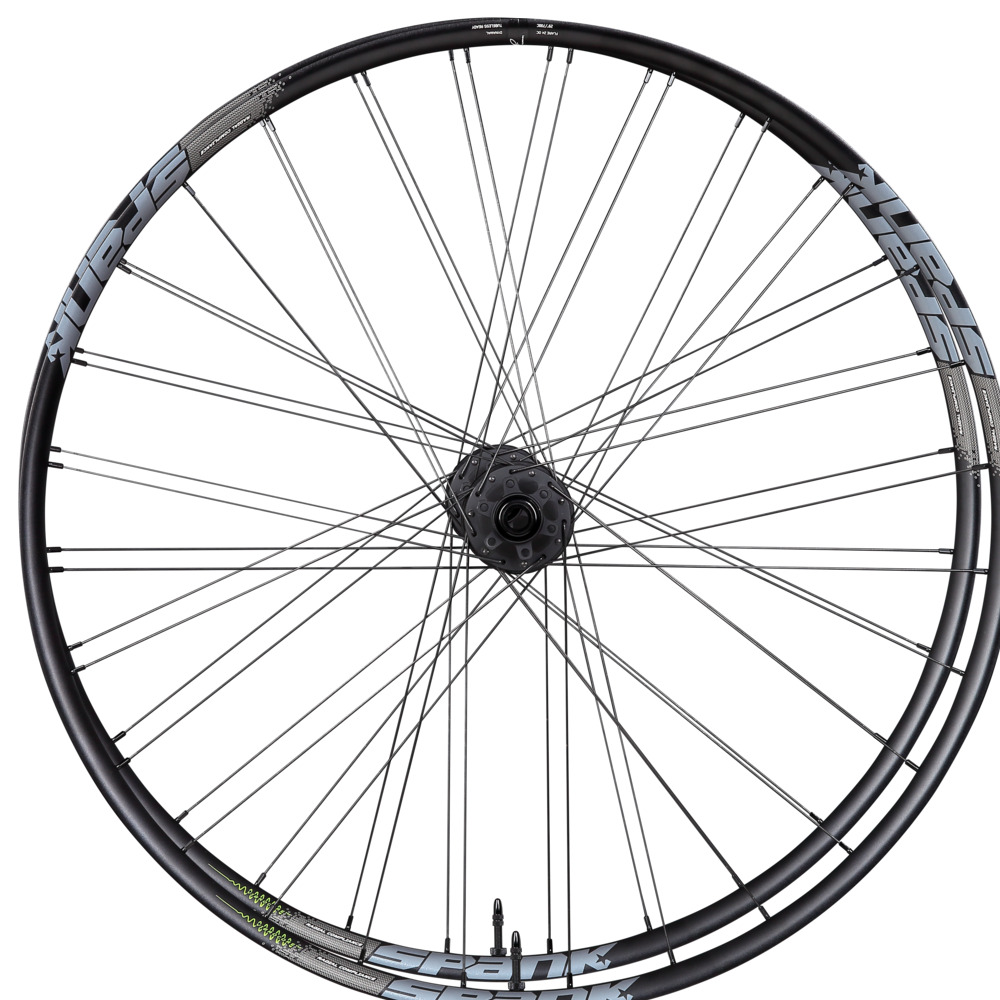

Spank Hex Flare Wheels - Front & Rear & Freehub Sold Separately

  Type
Size
Colour
RRP
SPA-C090521RD0J320A
Spank Hex Flare 24 OC Vibrocore Rear Wheel 650B/27.5in 28H 142/135 Black (without freehub body)

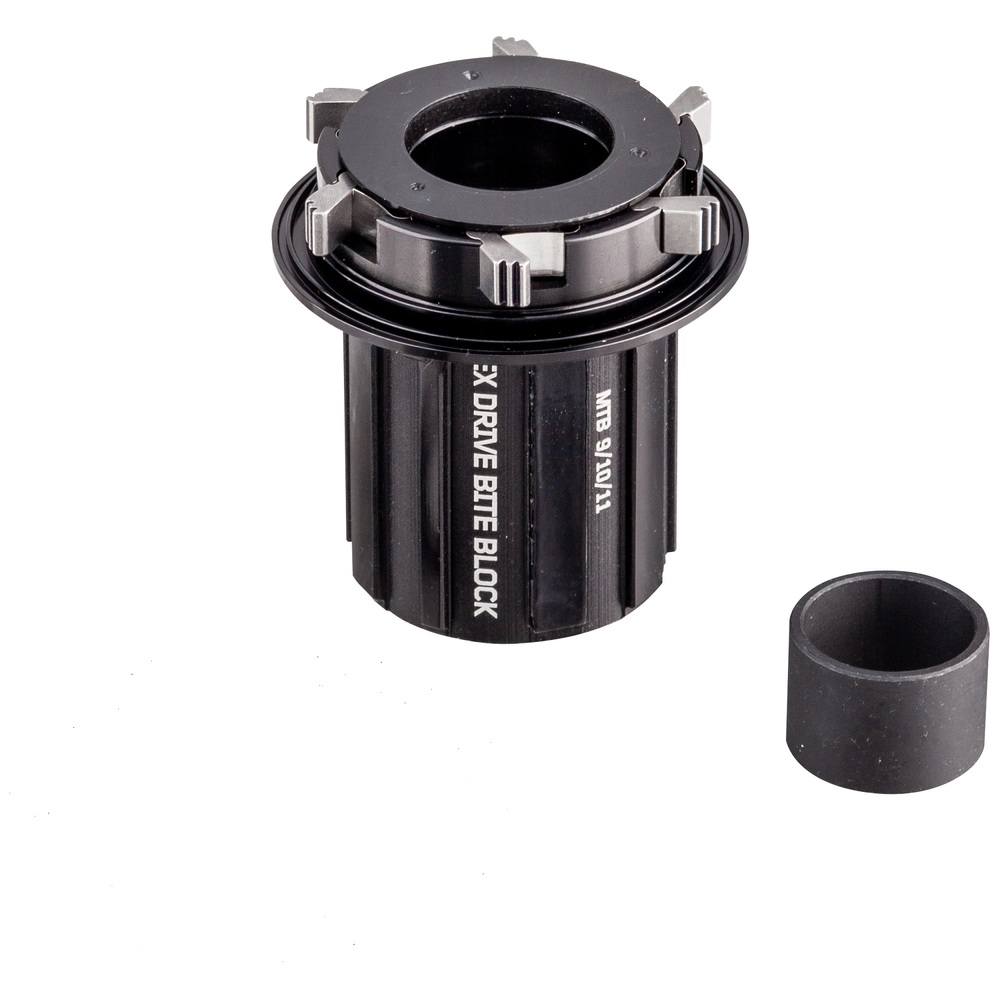

Freehub Sold Separately
Rear 650B/27.5in 28H 142/135
Black
-
SPA-C090531RD0J320A
Spank Hex Flare 24 OC Vibrocore Rear Wheel 700C/29in 28H 142/135 Black (without freehub body)
Freehub Sold Separately
Rear 700C/29in 28H 142/135
Black
-
SPA-C090421F30J320A
Spank Hex Flare 24 Vibrocore Front Wheel 650B/27.5in 28H Black
Front 650/27.5 28H 100
Black
-
SPA-C090431F30J320A
Spank Hex Flare 24 Vibrocore Front Wheel 700C/29in 28H Black
Front 700/29 28H 100
Black
-

A La Carte Wheels - choose the combination that works best for you.

Front and rear wheels sold separately. Freehub sold separately.

When choosing a rear wheel choose the separate freehub to suit the cassette you will be installing.

  • Disc specific, tubeless ready, clincher rim, with Vibrocore, optimized for Gravel, Adventure, and MTB Cross Country use
  • Vibrocore inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
  • Low profile 16.5mm depth, and wide 27.5mm outer width enhance Radial Compliance, improving traction, while reducing negative feedback to the rider
  • Asymmetric, 24mm inner width profile improves spoke tension balance between drive side and non-drive side spokes, and optimizes gravel/XC tire spread
  • Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures



Recommended for: Gravel, XC



Rim Specifications:

Hole Count:  28H
Inner Width (mm):  24
Outer Width (mm):  28
Profile Height (mm):  16.5
Tyre Fit:  35-62mm / 1.5-2.3"



Build Specifications:

Build:  Handbuilt
Hub:  Spank Hex Gravel J-Type
Disc Mount  6-Bolt
Spokes:  J-Hook, triple-butted 2.2/1.8/2.0
Nipples:  Alloy external
Lacing:  3 cross lacing
Valve:  F/V Presta
Tubeless:  Tubeless taped and valved



Variant Specs:

Size   Hub Hub Spacing Hole Count Adapter Incl. Weight Approx. ERD ETRTO Spoke Length Right (mm) Spoke Length Left (mm)
 27.5"  Front Hex J-Type 12x100 28H QRx100 755g  564++  584x24 278 277
 27.5" Rear Hex J-Type 12x142 28H QRx135 920g  564++  584x24 277 278
29" Front Hex J-Type 12x100 28H QRx100 788g  602++  622x24 297 296
29" Rear Hex J-Type 12x142 28H QRx135 950g  602++  622x24 296 297
Brand Spank
Unit Of Measure 1
SKU Size / Colour Barcode
SPA-C090521RD0J320A Rear 650B/27.5in 28H 142/135
Black
4710155969096
SPA-C090531RD0J320A Rear 700C/29in 28H 142/135
Black
4710155969102
SPA-C090421F30J320A Front 650/27.5 28H 100
Black
4710155966637
SPA-C090431F30J320A Front 700/29 28H 100
Black
4710155966644
