Spank Hex 350 Vibrocore Boost Wheels - Front & Rear & Freehub Sold Separately

  Type
Size
Colour
RRP
SPA-C090222F20J220A
Spank Hex 350 Vibrocore Boost Front Wheel 27.5in 32H Black
Front 27.5in 32H 110
Black
-
SPA-C090232F20J220A
Spank Hex 350 Vibrocore Boost Front Wheel 29in 32H Black
Front 29in 32H 110
Black
-
SPA-C090222RE0J220A
Spank Hex 350 Vibrocore Boost Rear Wheel 27.5in 32H 148mm Black (without freehub body)

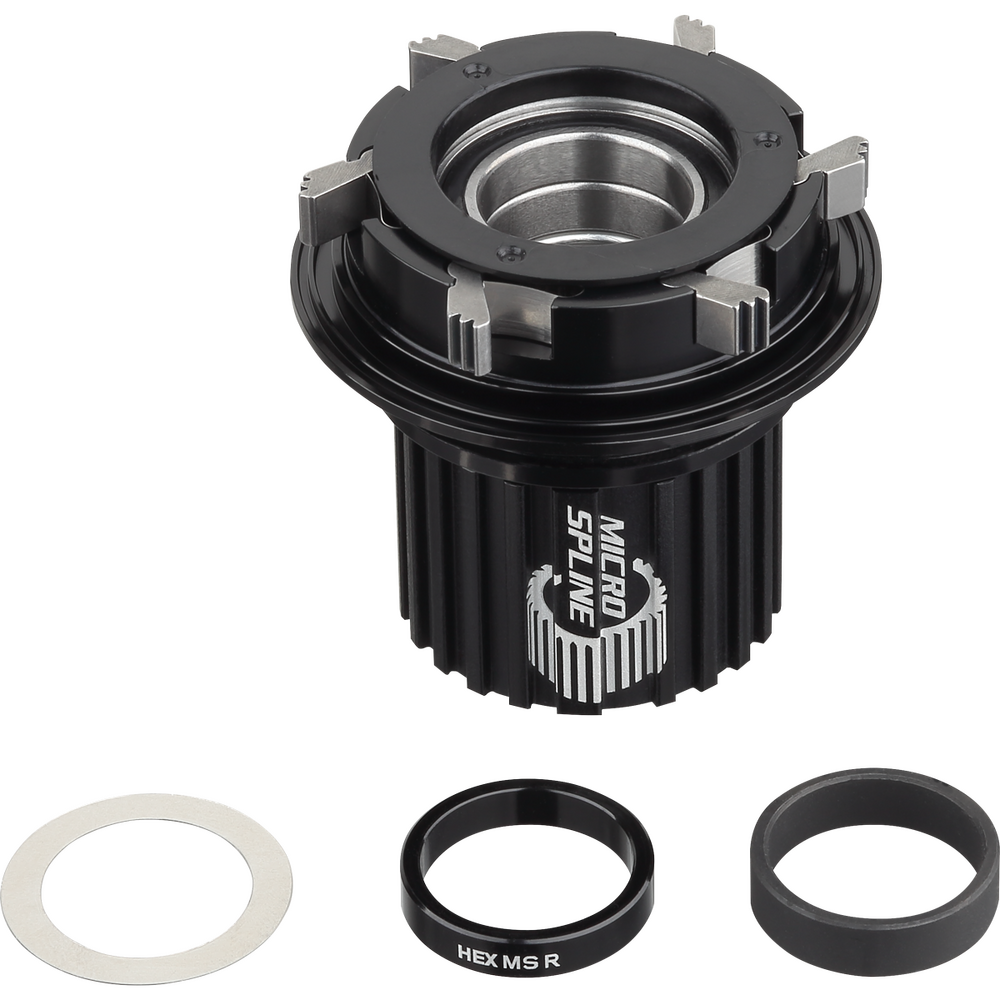

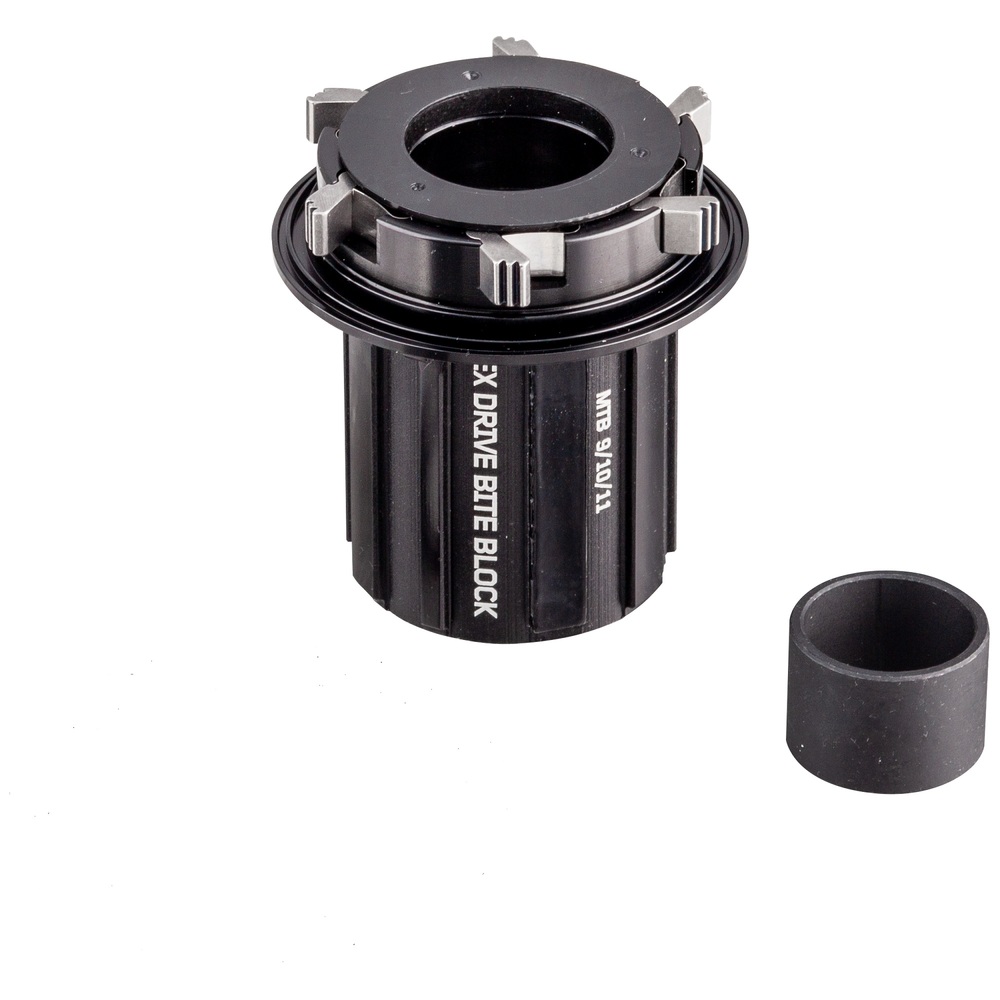

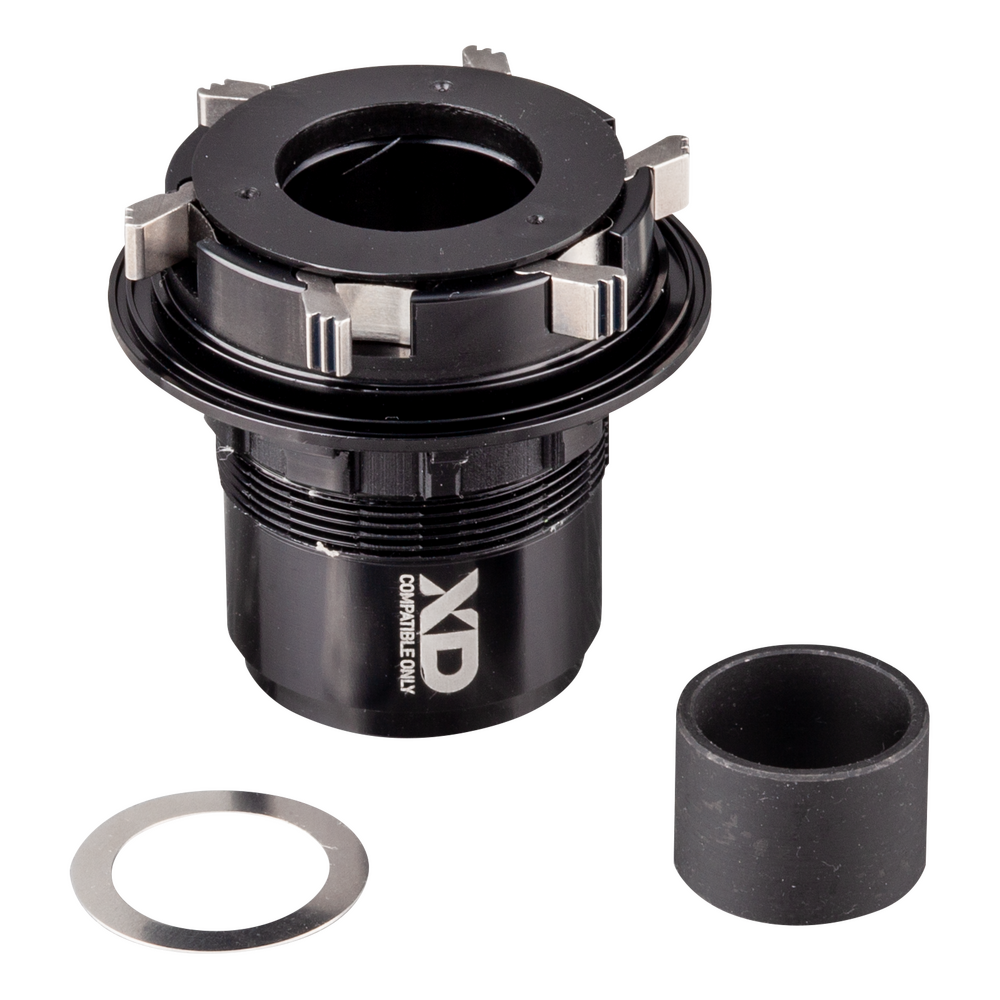

Freehub Sold Separately
Rear 27.5in 32H 148
Black
-
SPA-C090232RE0J220A
Spank Hex 350 Vibrocore Boost Rear Wheel 29in 32H 148mm Black (without freehub body)
Freehub Sold Separately
Rear 29in 32H 148
Black
-

A La Carte Wheels - choose the combination that works best for you.

Front and rear wheels sold separately. Freehub sold separately.

When choosing a rear wheel choose the separate freehub to suit the cassette you will be installing.

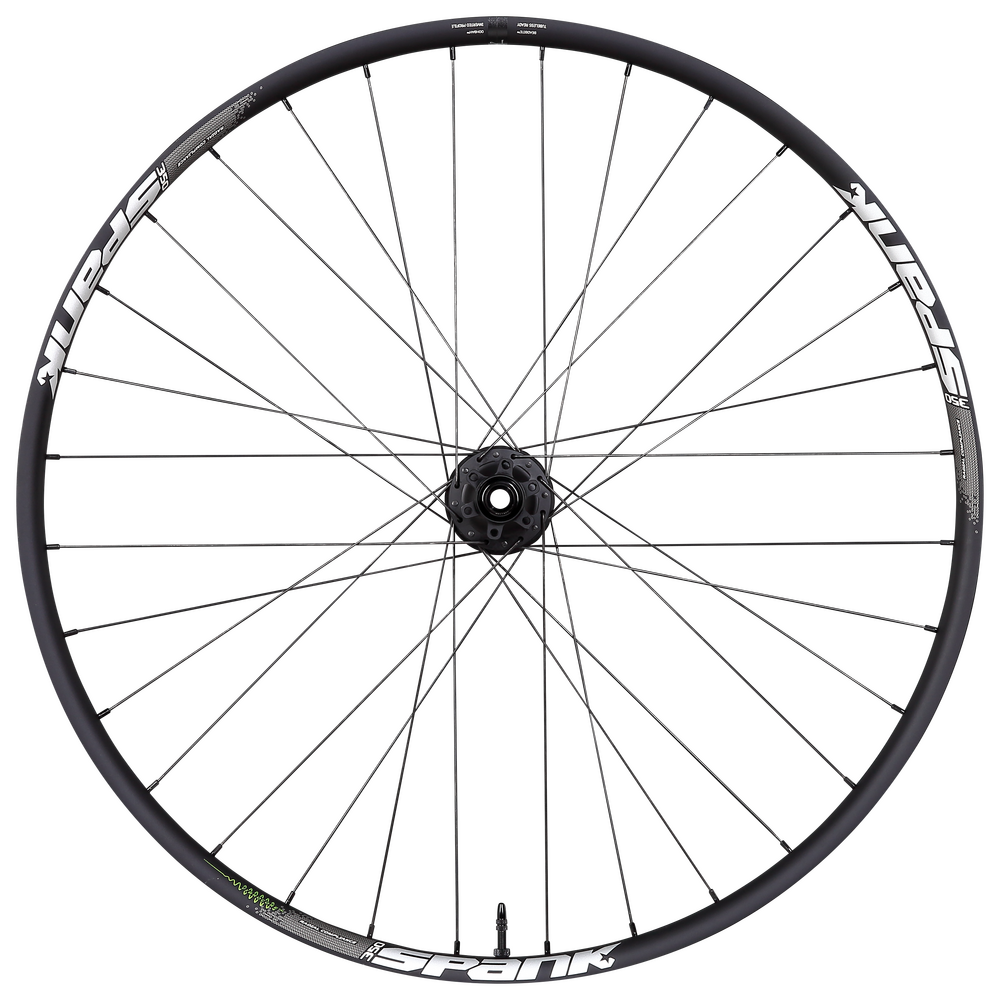

The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel.  Hand-built to A-Class specifications, the 350 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse, and is trusted by pros on the UCI DH World Cup and Enduro World Series circuit.

  • Unique profile with low sectional height & wide width adds radial compliance & lateral stiffness
  • Improved radial compliance for better traction over bumps & chatter while reducing negative feedback to the rider gives enhanced performance & comfort
  • Vibrocore inner well reduces the transmission of harmful vibration frequencies & increases the fatigue life of the rim
  • 30mm internal width is versatile fitting tires from 2" to 2.6" and allows plus size tire use without negative squaring off of tire profiles



Recommended for: All Mountain, Trail, Enduro, Freeride, Downhill



Rim Specifications:

Hole Count:  32H
Inner Width (mm):  30.5
Outer Width (mm):  35
Profile Height (mm):  17
Tyre Fit:  2.0 - 2.6 inch



Build Specifications:

Build:  A-Class Handbuilt
Hub:  Spank Hex J-Type
Disc Mount  6-Bolt
Spokes:  J-Hook, triple-butted 2.2/1.8/2.0
Nipples:  Brass external
Lacing:  3 cross lacing
Valve:  F/V Presta
Tubeless:  Tubeless taped and valved



Variant Specs:

Size   Hub Hub Spacing Hole Count Adapter Incl. Weight Approx. ERD ETRTO Spoke Length Right (mm) Spoke Length Left (mm)
 27.5"  Front Hex J-Type Boost 15x110 32H Boost 20x110 1086g  564++  584x30.5 274 272
 27.5" Rear Hex J-Type Boost 12x148 32H   1130g  564++  584x30.5 272 275
 27.5" Rear Hex J-Type 12x150 32H 12x157 1130g  564++  584x30.5 272 275
29" Front Hex J-Type Boost 15x110 32H Boost 20x110 2025g  602++  622x30.5 293 291
29" Rear Hex J-Type Boost 12x148 32H   1175g  602++  622x30.5 291 294
29" Rear Hex J-Type 12x150 32H 12x157 1175g  602++  622x30.5 291 294
Brand Spank
Unit Of Measure 1
SKU Size / Colour Barcode
SPA-C090222F20J220A Front 27.5in 32H 110
Black
4710155965135
SPA-C090232F20J220A Front 29in 32H 110
Black
4710155965159
SPA-C090222RE0J220A Rear 27.5in 32H 148
Black
4710155968853
SPA-C090232RE0J220A Rear 29in 32H 148
Black
4710155968877
